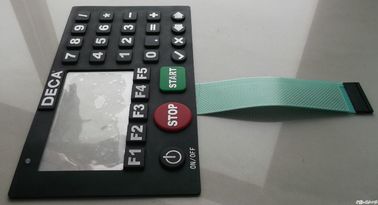

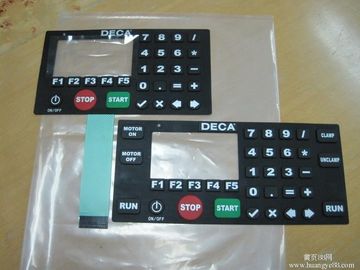

Silicone Rubber Membrane Switch Keyboard Metal Dome With Embossing 1500 V DC

صورة كبيرة : Silicone Rubber Membrane Switch Keyboard Metal Dome With Embossing 1500 V DC

تفاصيل المنتج:

Place of Origin:	DongGuan China
اسم العلامة التجارية:	TianTai
إصدار الشهادات:	ISO9001:2008, SGS,Rohs
Model Number:	TT-MS-001

شروط الدفع والشحن:

Minimum Order Quantity:	Negotiate
الأسعار:	Negotiate
Packaging Details:	Inner packing:1pc/PP bag,PE bag; Outer packing: exporter carton, or as per customer request.
Delivery Time:	Around 14-18 business days after payment.
Payment Terms:	T/T, Paypal or Western union
Supply Ability:	500000 Piece/Pieces per Month

اتصل

مفصلة وصف المنتج

تسليط الضوء:

PCB Membrane Switch,membrane switch Keyboard

membrane switch Keyboard

Silicone Rubber Membrane Switch Keyboard Metal Dome With Embossing 1500 V DC

Description:

1) Custom made OEM / ODM
2) Silicone rubber keypad panel
3) Assemble With Membrane Switch
4) Withstand millions of cycles
5) perfect exterior and good touch feeling
6) metal dome or silicone keypad is also available.
7) Carbon Pills For Contact With PCB Board.

Applications:

Our Silicone keypad panel membrane switches are widely used in :

Medical Equipment
Telecommunications apparatus
Telephone systems
Household appliances
Security systems
Point of sale apparatus
Industrial controls
Access control systems.....

wire lead resistance:	＜1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0～30V DC	Operation Temperature:	-40℃～70℃
Rated Voltage:	＜50V, DC	Operation Humidity:	at40℃,＜98%RH
Insulation resistance:	＜100MΩ,250V DC	Dome springback time:	＜5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

Specifications:

1 material : PET / PC
2 adhesive: 3M467 & 3M468 or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality

Competitive Advantage:

1. Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2. Panel can wash, good protection of durable color,characters,logos and other panel contents without injury.
3. Small size,light weight ,thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4. Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.
5. Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.
6. Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.
7. Customized specification is available and keys can make different shapes
