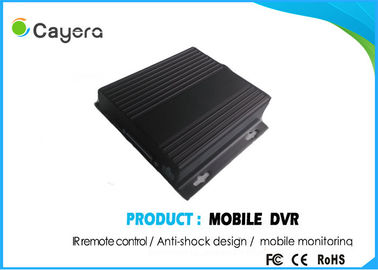

4CH Real-time Recording SD Mobile DVR Recorder PTZ Control For Ambulance

4CH Real-time Recording SD Mobile DVR Recorder PTZ Control For Ambulance
4CH Real-time Recording SD Mobile DVR Recorder PTZ Control For Ambulance

صورة كبيرة :  4CH Real-time Recording SD Mobile DVR Recorder PTZ Control For Ambulance

تفاصيل المنتج:
Place of Origin: China
اسم العلامة التجارية: Vicord
إصدار الشهادات: CE,ROHS, FCC
Model Number: MCS1GNN
شروط الدفع والشحن:
Minimum Order Quantity: 200pcs
الأسعار: Negotiation
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 Pcs/Year
مفصلة وصف المنتج
vdieo standards: PAL(625line,50f/s);NTSC(525line,60f/s) vdieo compression: H.264(High Profile)
play quality: D1/Half-D1/CIF/QCIF bidrectional talk: support
GPS: support Power consumption: Less than 10W
تسليط الضوء:

mobile dvr recorders,car dvr recorder

,

car dvr recorder

4CH Real-time Recording SD Mobile DVR Recorder PTZ Control For Ambulance

Application:


Logistics vehicles,escort vehicles, taxi,The school bus,Cargo transport vehicle,Mining /vehicle,Construction vehicle,Police vehicles,Medical vehicles, bus,Family car,
ambulance.


Feature:

  • Startup recording by default, support auto timed, alarm & manual recording
  • Industrial Level design,smart mini size with professional aviation input, easily installation
  • Support recording vehicle information including running state, license and running route
  • Low power consumption
  • Supports VGA high definition video/audio output
  • Good anti-vibration and anti-high temperature function for stable picture quality
  • Storage: SD card storage(support to 64GB)
  • G. 711 audio compression, 4CH audio input, 1CH audio output
  • Multiple language options, covers almost all main languages all over the world

Specifications:



Model

MCS1GNN

system

Main processor

Industrial Embedded Microcontrollers

Operating system

Embedded LINUX

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4

video

vdieo standards

PAL(625line,50f/s);NTSC(525line,60f/s)

vdieo compression

H.264(High Profile)

display quality

monitor:D1

play quality

D1/Half-D1/CIF/QCIF

encode capacity

4ch D1 real-time(default CIF)

decode capacity

2ch D1 real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

support

Record
&
playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage
&
backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

SD,MAX64G

backup mode

Network backup,USB,USB Burn

interface

video input

4ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch cable

audio input

4ch

audio output

1ch(200-3000mV,5K)

alarm input

no

alarm output

no

net interface

no

PTZ control

One RS485,one RS232

USB

One USB

Mobile interface
&
functions

GPIO

Support  OSD overlay, storage(optional) etc

GPS

Support



others

support delay boot up/shut down,timing boot up/shut down

complement

player

mobile exclusive player,Support google map,showing vehicle running track and data.

SDK

Free SDK for second development

others

Power supply

Wide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 4* 12V controllable power supply for external camera,independent 12V/1.5A,5V/1.5A output

Power consumption

Less than 10W

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

130(L)*147(W)*36(H)mm

weight

420g
