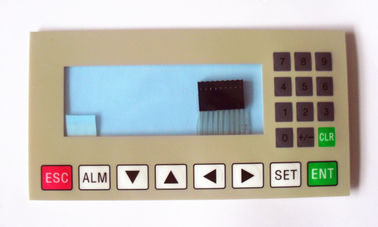

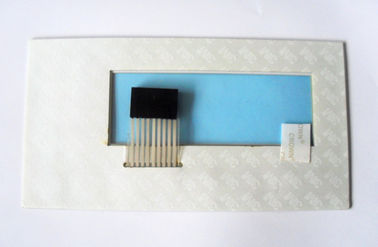

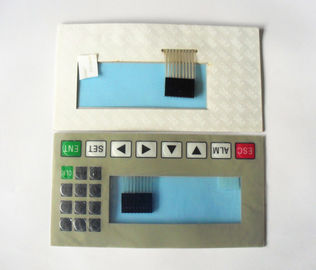

Push Button Waterproof Membrane Switch , Professional Touch Screen Membrane

Push Button Waterproof Membrane Switch , Professional Touch Screen Membrane
Push Button Waterproof Membrane Switch , Professional Touch Screen Membrane

صورة كبيرة :  Push Button Waterproof Membrane Switch , Professional Touch Screen Membrane

تفاصيل المنتج:
Place of Origin: Shenzhen
اسم العلامة التجارية: BEZ
إصدار الشهادات: ISO9001
Model Number: 390-25
Circuit: 0.125 PET or 0.125 flexible PCB keyboard
شروط الدفع والشحن:
Minimum Order Quantity: 100 pcs
الأسعار: negotiation
Packaging Details: 50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time: 7-10 days
Payment Terms: T T WestUnion
Supply Ability: 1000000 pcs each day
مفصلة وصف المنتج
تسليط الضوء:

single membrane switch, custom membrane switch

,

custom membrane switch


Push Button Waterproof Membrane Switch , Professional Touch Screen Membrane


Quick Detail:

> First layer : DF F150
>  Second layer : adhesive DT 6100
> Third layer : metal dome protector mylar 0.1 mm
> Forth layer : FPC cooper foiled circuit 0.125 mm
> Fifth layer : adhesive 3M467
> Pitch : 1.0 mm
> Pin : 11 pin


Description:

> Surface :Matte
> Overlay button: embossed 0.35 mm
> Bottom circuit : flat
> Led window : no color coated translucent
> Circuit crossing : yes
> Conductive side :top side conductive


Specifications


Circuit rating

35V(DC),100mA,1 W

Contact resistance

10Ω - 500Ω(According the trace length and materials to confirm)

Insulation resistance

>100MΩ 250V(DC)

Contact bounce

≤5ms

Dielectric withstand

250VRms(50 - 60Hz/1 min)

Life expectancy

flat type≥5 million times, tactile type:≥1 million times

Mechanical Properties

Operating pressure

flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)

Switch stroke

flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm





 Applications:


1.     A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on


B. For mechanical and electrical products such as CNC machine electric weighing  ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .


C. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on


2. Note:
Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome




Why to choose Shenzhen boerzhuo membrane switches?



1.     No need to worry about the qualities (We take response if our reason lead failure ).
2. Any products in our factory are did life span test ,circuit test ,every step is in good quality control ,we insist on ,quality is depend on the making step not the QC workers ..
3. We are specialized ,can help to design and make good suggestion .

4. Except membrane switch and touch screen, we can also do different types of assembly, such as membrane switch and touch screen with FPC, PCB ,silicone rubber ,metal backer ,plastic bezel and so on.
 5. We can accept small quantity order and offer competitive price.
6. Strict quality inspection ,100 %  function testing ,and we can also do specified testing ,such as humility testing ,life expectancy testing ,actuation force testing.

A: What’s the lead time for sample and mass order  ?
B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..

A: How long is your quality guarantee period
B: in usually,3 months.
A:Great, TKS. Do it.
